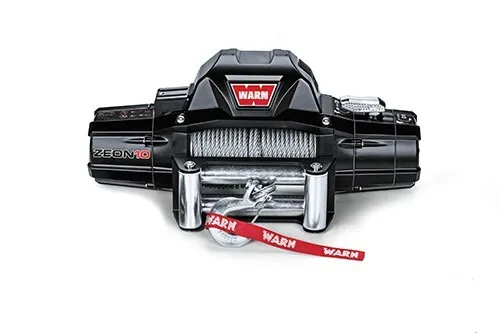

WARN ZEON 10 Electric Winch Wire Rope

£1,150.00 ex.VAT £1,380.00 inc.VAT
Product Code: WARNZEON10

The WARN ZEON 10 Electric Winch Wire Rope is ideal for 4x4s, larger pick-up trucks and SUVs for everyday winch work and getting yourself out of trouble.

  • IP68-rated waterproof winch
  • Includes 80' of 3/8" galvanized steel wire rope with Clevis Hook
  • Roller Fairlead
  • Remote with 3.7m lead. Option to remote-mount the control box

CHOOSE AMOUNT:
Overview and Specification

The WARN ZEON 10 Electric Winch Wire Rope features IP68-rated waterproof construction. An ultra-reliable Albright® contactor is inside a relocatable control pack and a corded remote with 11.5′ (3.5m) lead.

With its fast line speed and lower amp draw, the ZEON range winches are the hardest-working standard-duty winches Warn has ever made. It is robust with tactical styling that looks excellent up front. Even better, its price won’t pull you out of your budget.

Note: This winch requires a compatible mounting plate to be properly mounted to your vehicle. Please visit our Winch Mount category for available options.

WARN ZEON 10 Electric Winch Wire Rope, Standard Features:

  • Line Capacity: 10,000lb / 4,536kg
  • Motor: Reversible 12v Series Wound Motor – Powers In and Out
  • Includes 80′ of 3/8″ galvanized steel wire rope, with Clevis Hook
  • Mechanical Cone Type Brake
  • Gearbox: Freespooling Clutch – Allows cable to be unwound manually
  • Warranty: Limited Lifetime Mechanical Warranty and 7 Years On Electrical
  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
  • IP68-rated waterproof winch construction keeps the elements out
  • High-performance Albright contactor delivers maximum reliability
  • Control packs can be relocated for low-profile installations
  • Durable, one-piece cast-aluminium tie-plate for added strength and durability
  • Corded remote with 12′ (3.7m) lead
  • There is a limited lifetime warranty for mechanical parts and seven years for electrical parts

Accessories:

  • Wired Hand Control Plug-in Remote
  • Wireless Remote WARN 90287 Available as an optional extra
  • Mounting Plate: Available as an optional extra
  • Fairlead: Roller Fairlead
  • Mounting Bolts: Included for Standard Installations

Also Includes:

  • Instruction Manual

Other Information:

  • Mounting Bolt Pattern: 254mm x 114.3mm

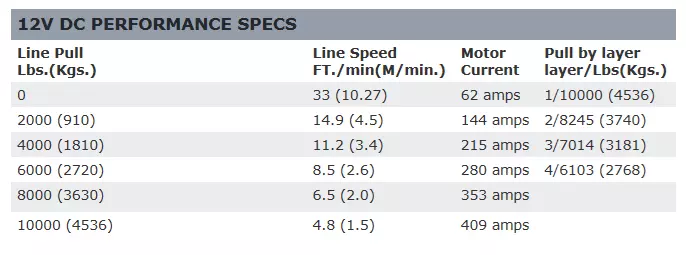

  • Line Pull – Full Load: 1.58 m/min (358 Amps)
