Towball Mount – For Winches Up to 12,000lb

Take your winch anywhere with this ultra-portable towball mounting system.
Compatible with winches ranging from 6,000lb to 12,000lb, this mount makes it easy to move and use your winch wherever you need it.

Versatile & Portable Mounting

Originally designed to mount a winch to a vehicle’s tow ball, this system has proven useful in many other scenarios too. If you can install a tow ball, you can use this mount—customers have found creative ways to put it to work!

Popular uses include:

• Installing a tow ball on your trailer for quick removal and added security.

• Mounting multiple tow balls to allow different winching positions.

• Adding a tow ball to your garage floor to pull in vehicles, trailers, caravans, boats, and more.

With a tow ball and a power source—your winch is portable and ready to use wherever it’s needed.

Quick & Secure Installation

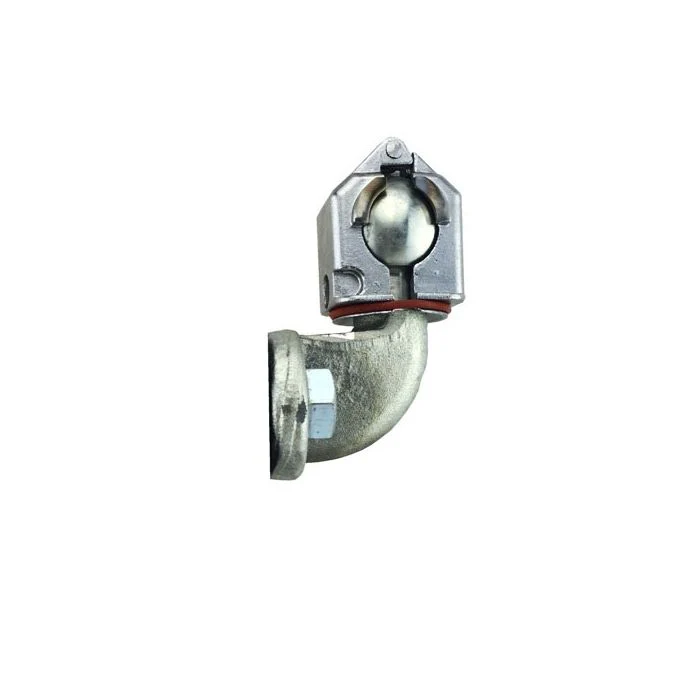

Designed to fit any standard 50mm tow ball, the mount features a cast stainless steel, spring-loaded clamp that locks onto the ball securely. The main plate slots over the clamp and is pinned in place. The swivel function allows the mount to align easily for straight-line pulls, ensuring smooth and even winch rope layering.

Heavy-Duty Build for Most Winches

Made from strong 5mm steel and suits most standard winches. It comes pre-drilled for:

• Winch mounting: 254mm x 114.3mm bolt pattern (fits most models).

• Fairlead mounting: 255mm hole centres (suitable for both Roller and Hawse Fairleads).

Recommended Setup

For easier handling and reduced overall weight, we recommend using a synthetic rope winch with this mount.

This particular unit as standard suits the following winches:

• Prestige / SPW H12000, our most popular winch!
• Prestige / SPW 9500, available here:
• Warrior S9500, available here:

This mount is pre drilled for winches with 254mm x 114mm hole centres. With some modification this mount could be changed to suit most winches of this size.  When using an alternative winch the restriction on width is 160mm.

We would always recommend using a synthetic rope winch with this mount.
