SPW Scaffold Hoist 500Kg, 240V or 110V versions

SPW Scaffold Hoist 500Kg, these are available in 240 and 110 volts, Single line 29m Lift, Pendant AND Wireless Controls as standard. Leading the field in design and performance for the professional customer – making them ideal for general engineering, builders and roofers alike.

This range have a single line operation combined with high speed, this is coupled with improved duty cycle and both long pendant and radio remote make the SPW Hoist a force to be reckoned with. Comparable with the DUKE brand hoists at a fraction of the cost.

This hoist’s duty cycle is S3 – 25% on an 8-minute cycle. In plain English, that means this unit can be used continuously for 2 minutes before needing an 6-minute cooldown period. Thanks to the load-holding brake, you can pause without losing any progress or needing to disassemble.

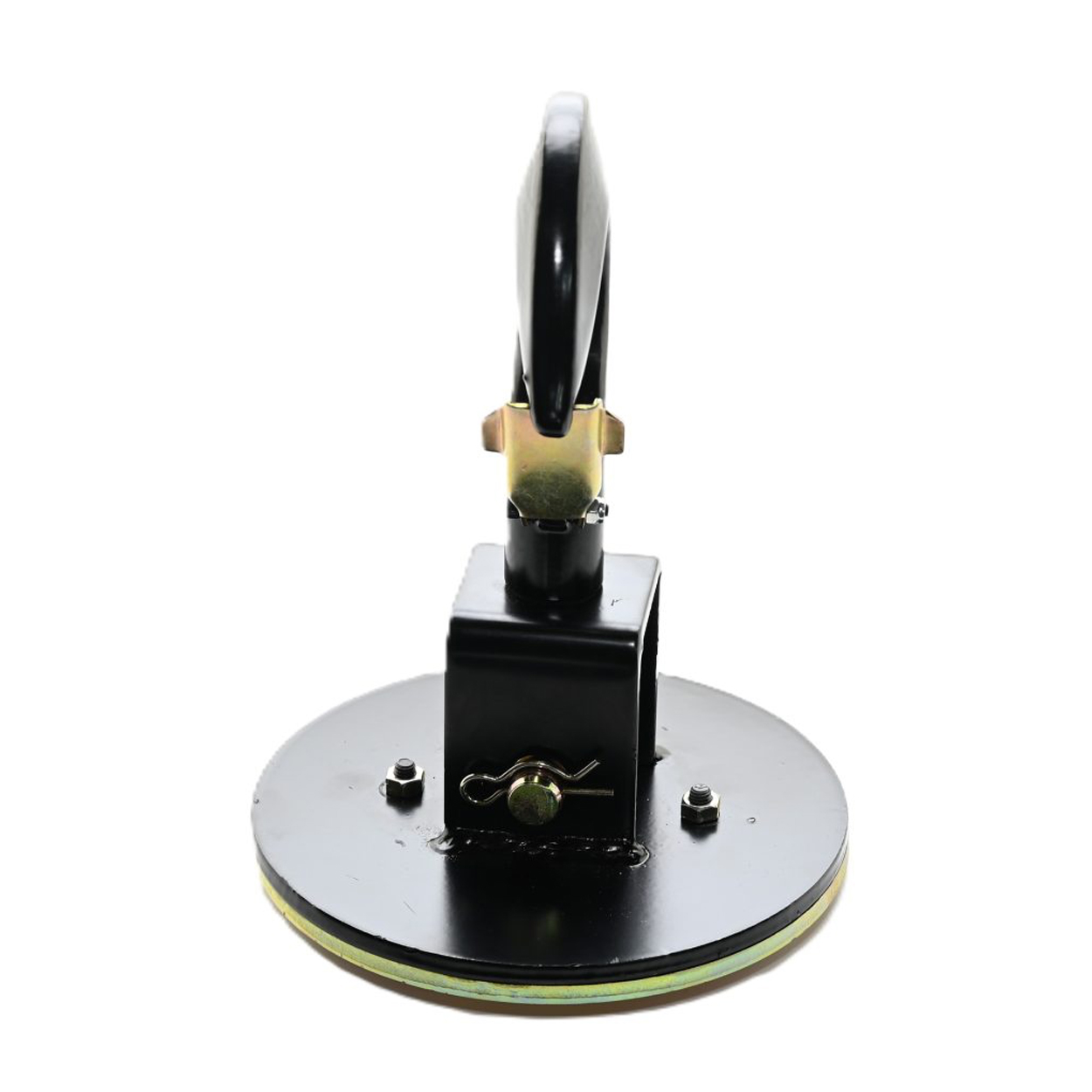

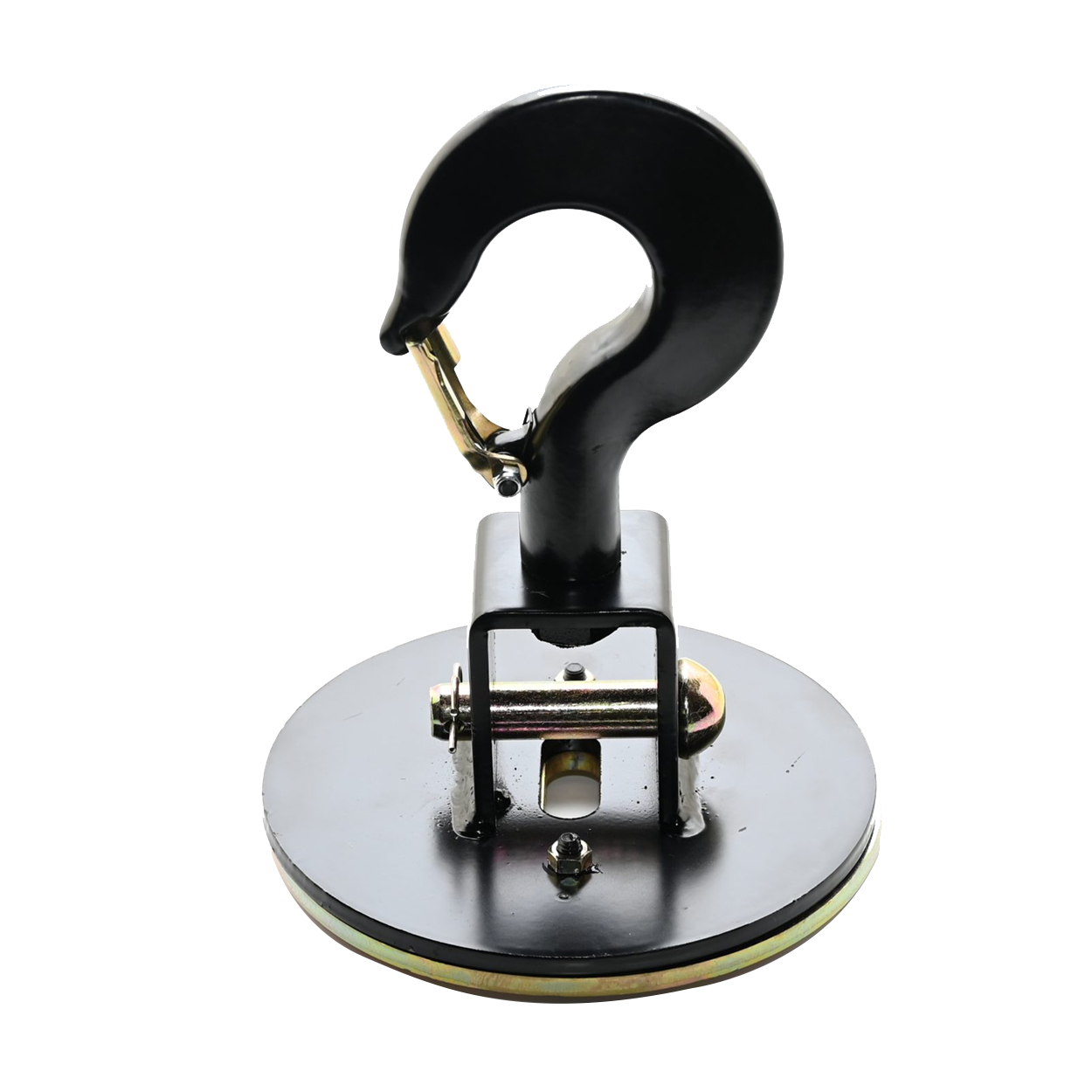

The simple suspending style with a protection hook (which secures the scaffolding hook ensuring it can’t bounce free) allows easy installation. These scaffold hoists make the job of getting building materials to upper floors and roofs much easier and safer.  High-strength carbon steel construction and powder-coated finish ensure maximum durability.

The SPW500SH110 and SPW500SH240 Scaffold Hoists conform to EN 14492:2, utilising a dynamic brake design for static and dynamic loading with upper and lower limit switches. BS EN 14492‑2 specifies the requirements safe operation of power-driven hoists.

SPW Scaffold Hoist 500Kg Features:

• Unique design, elegant shape and robust construction.
• Pendant control and wireless remote systems are included.
• Pendant control with emergency stop
• Supplied with power lead and plug
• Suspending style with protection hook allows for convenient, reliable and safe mounting onto the scaffolding.
• Special automatic rope winding system lines up the steel rope with no mess and increases the rope’s lifespan.
• Easy to change the steel rope without needing to disassemble the hoist.
• The up-and-down limiting device meets European Standard EN-14492-2:2006.
• The newly designed bearing system allows free rotation of the cable drum and increases the lifetime of the hoist.
• Closed headroom: 670mm (when the hook is fully up)
• Safety hook protection.

Available in 110v and 240v.

When powering from a generator you will need a 5.4kw Genset
